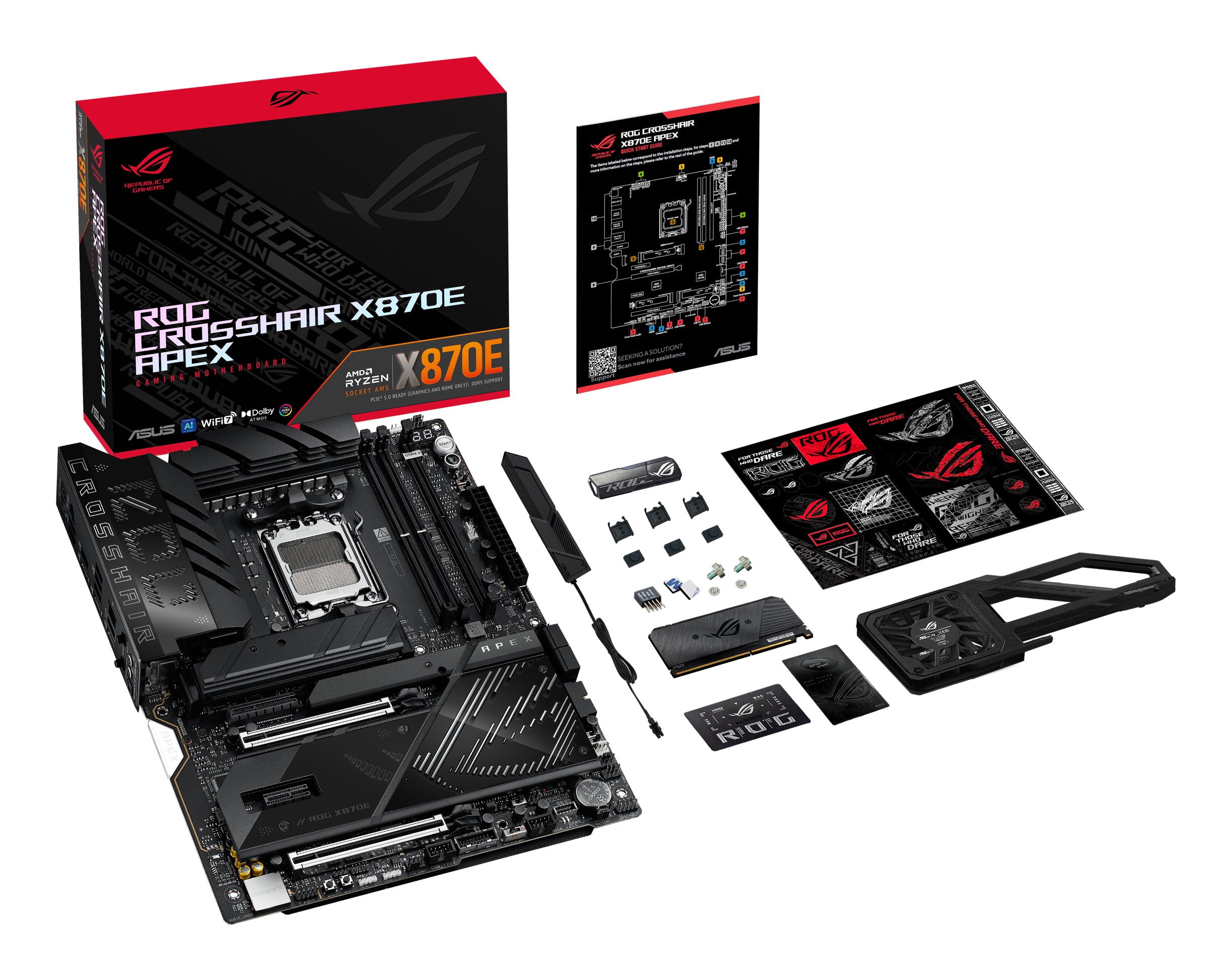

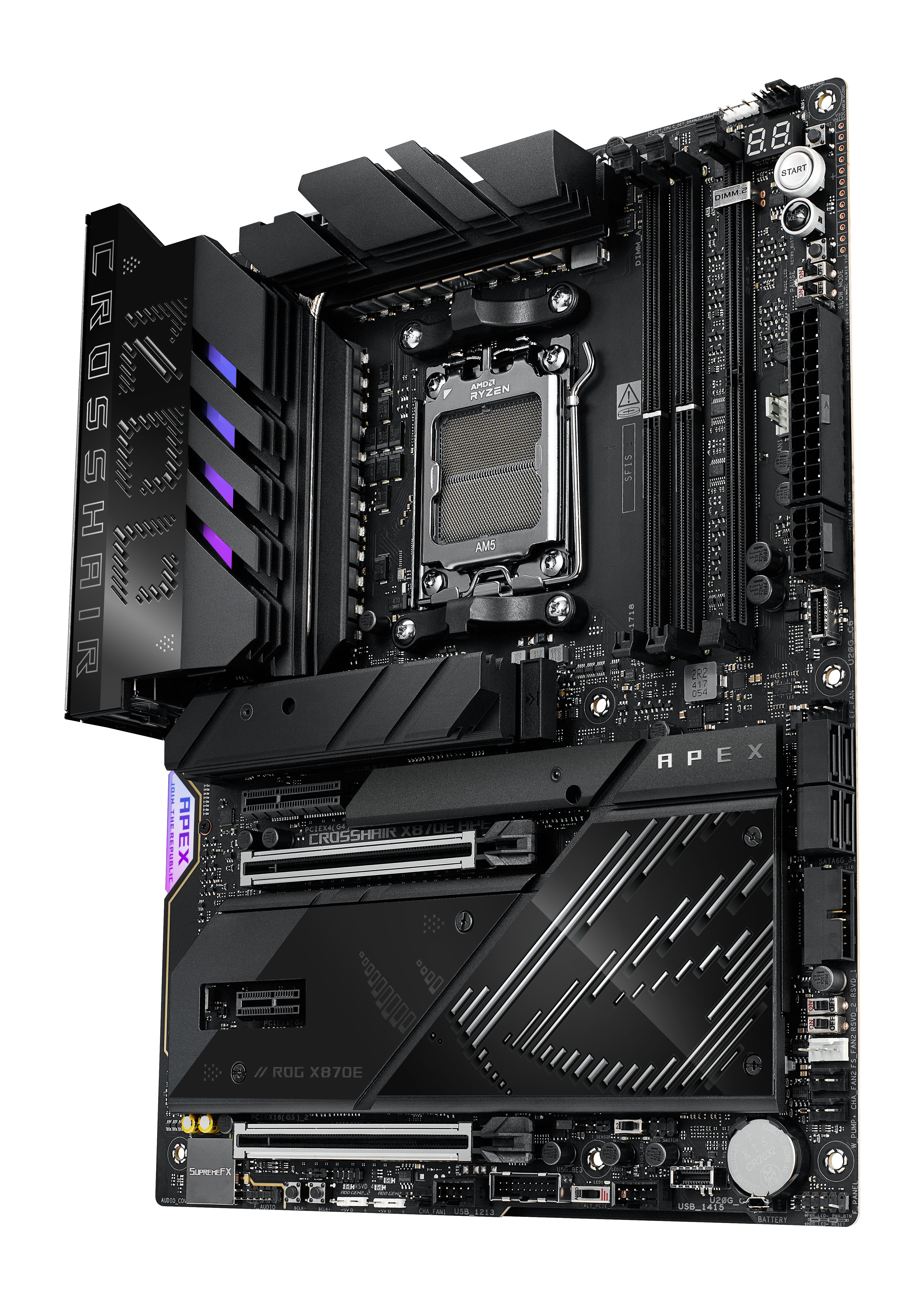

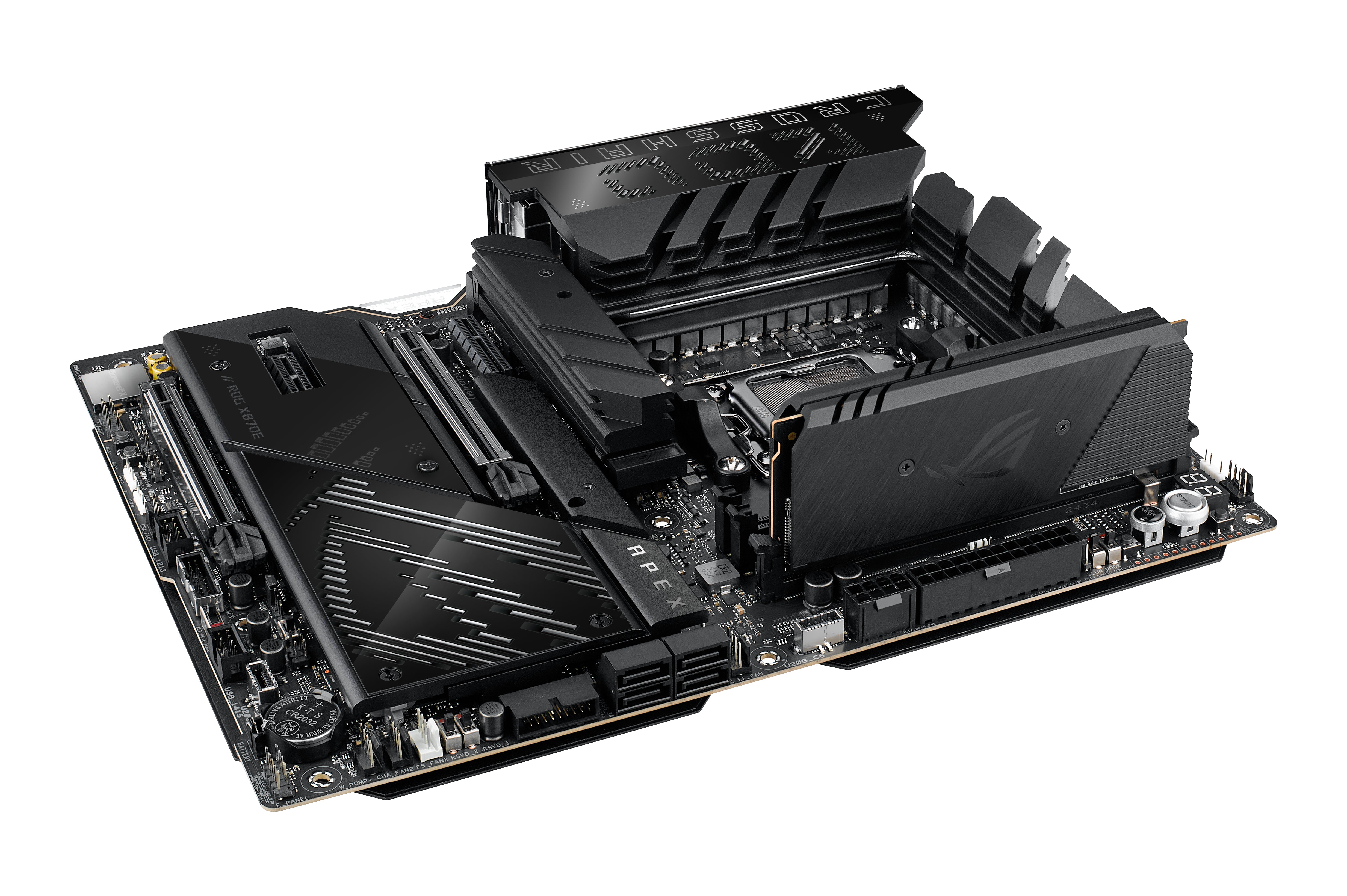

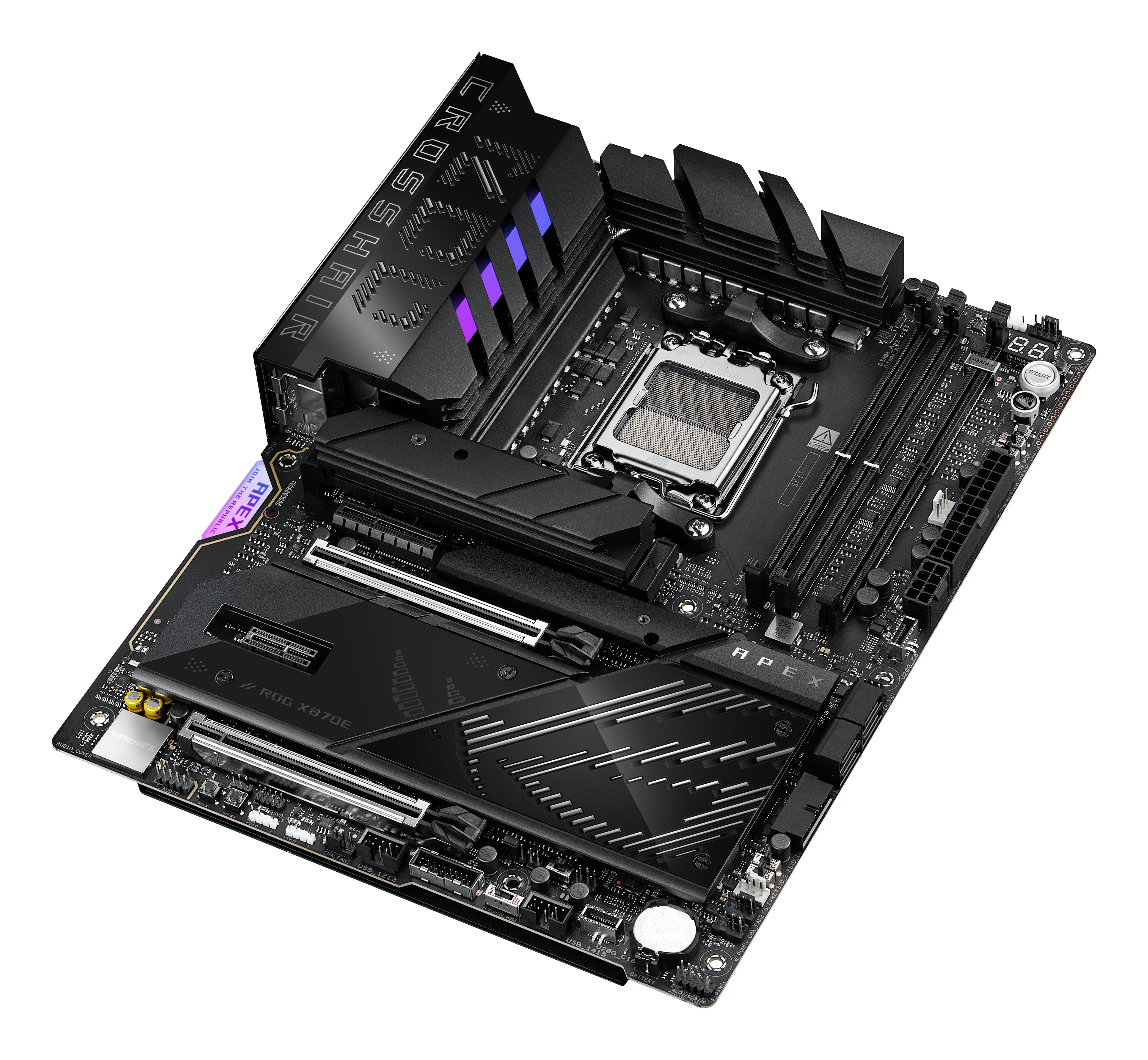

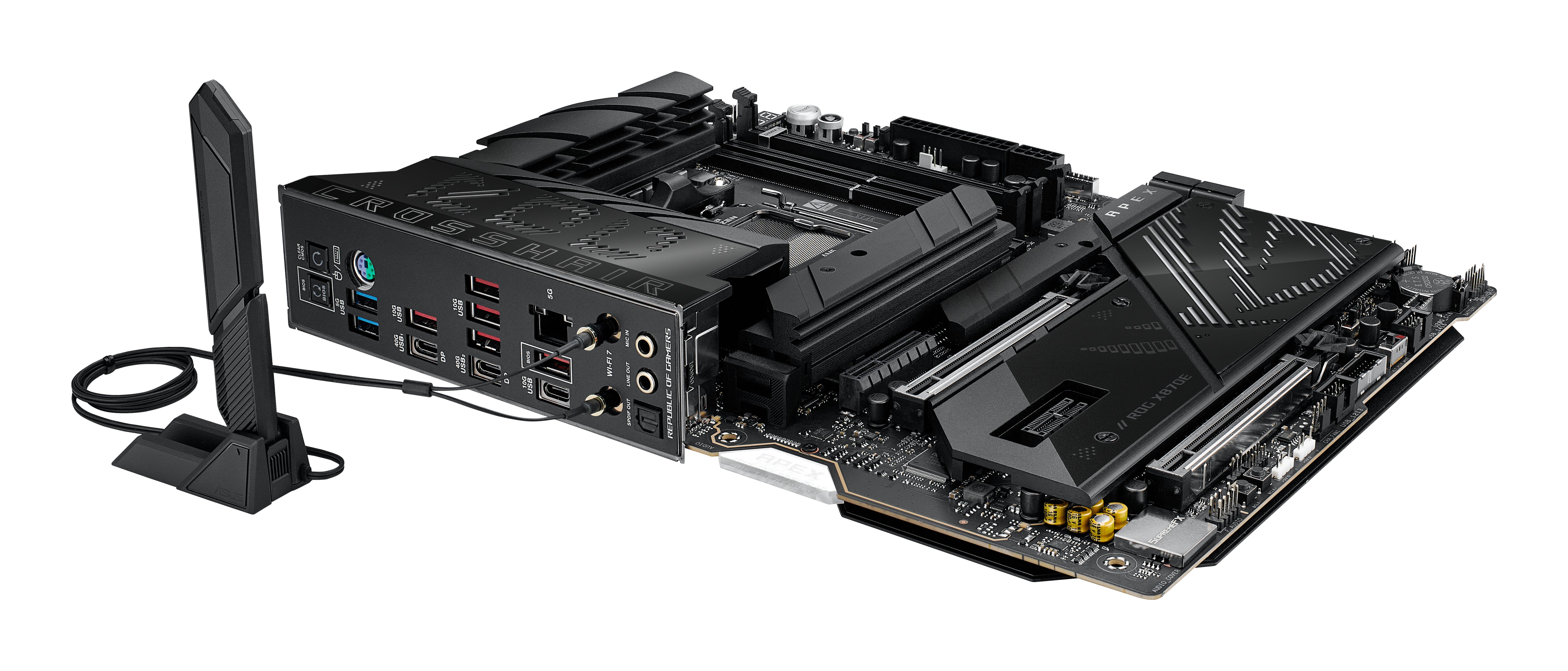

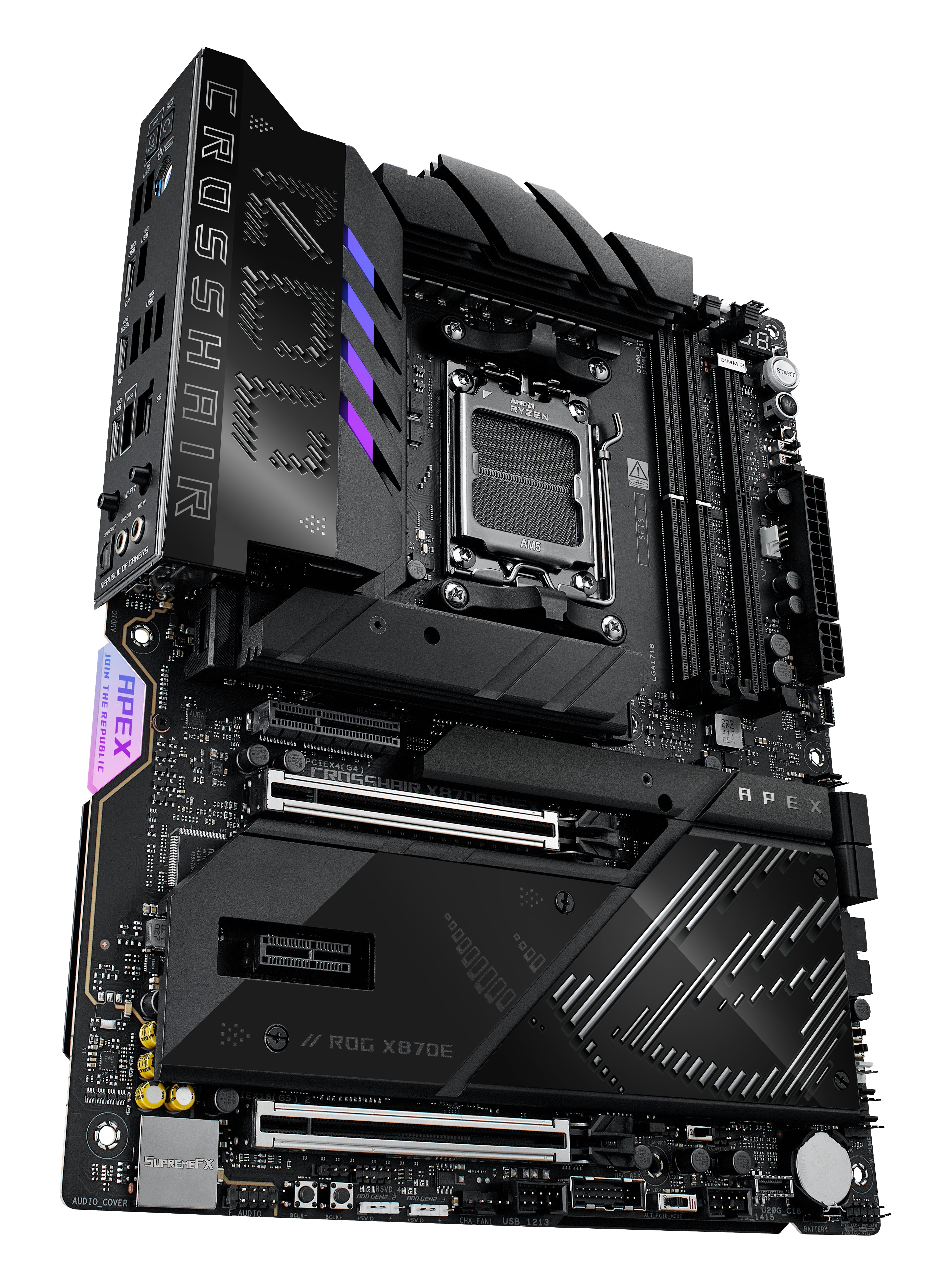

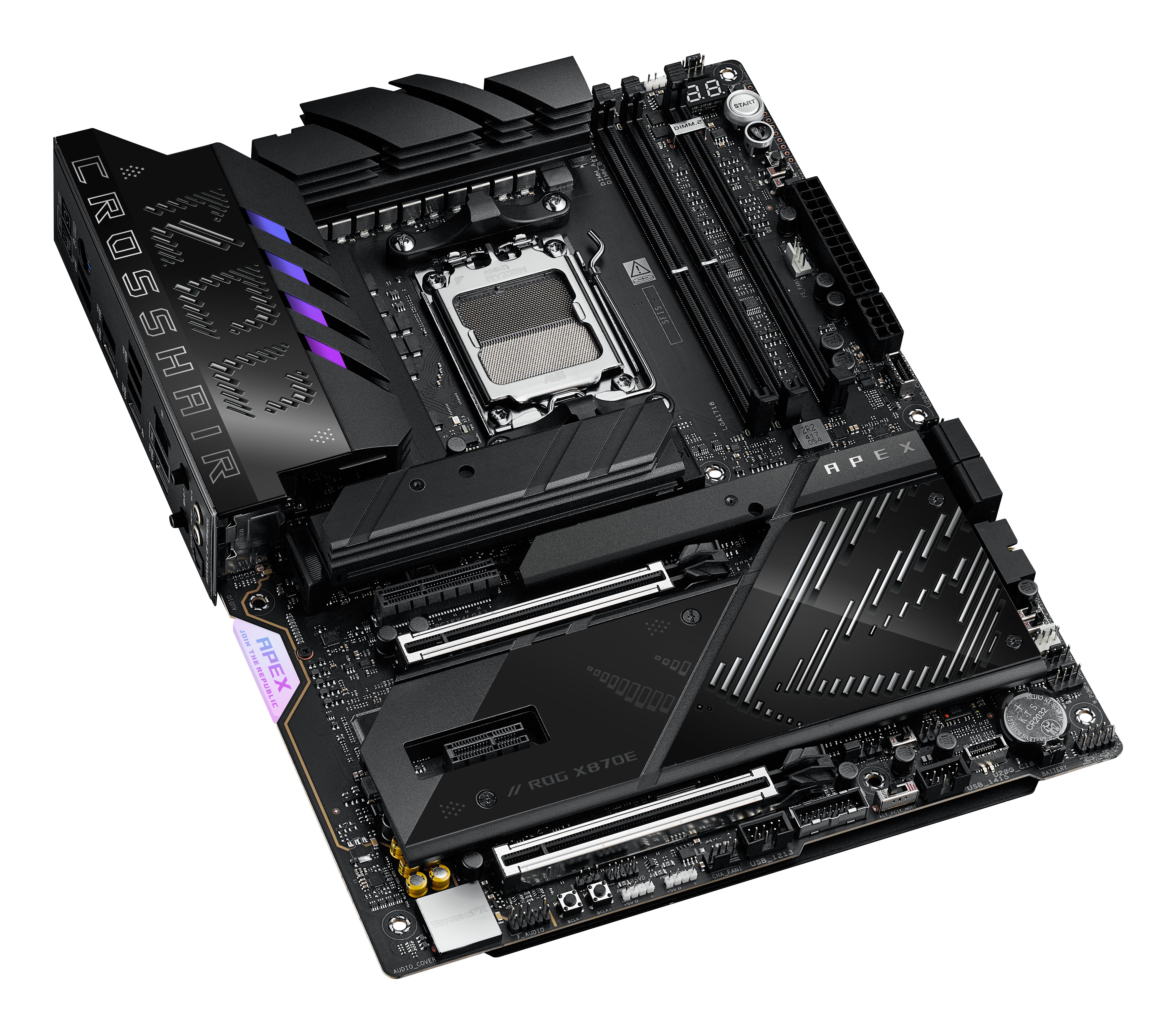

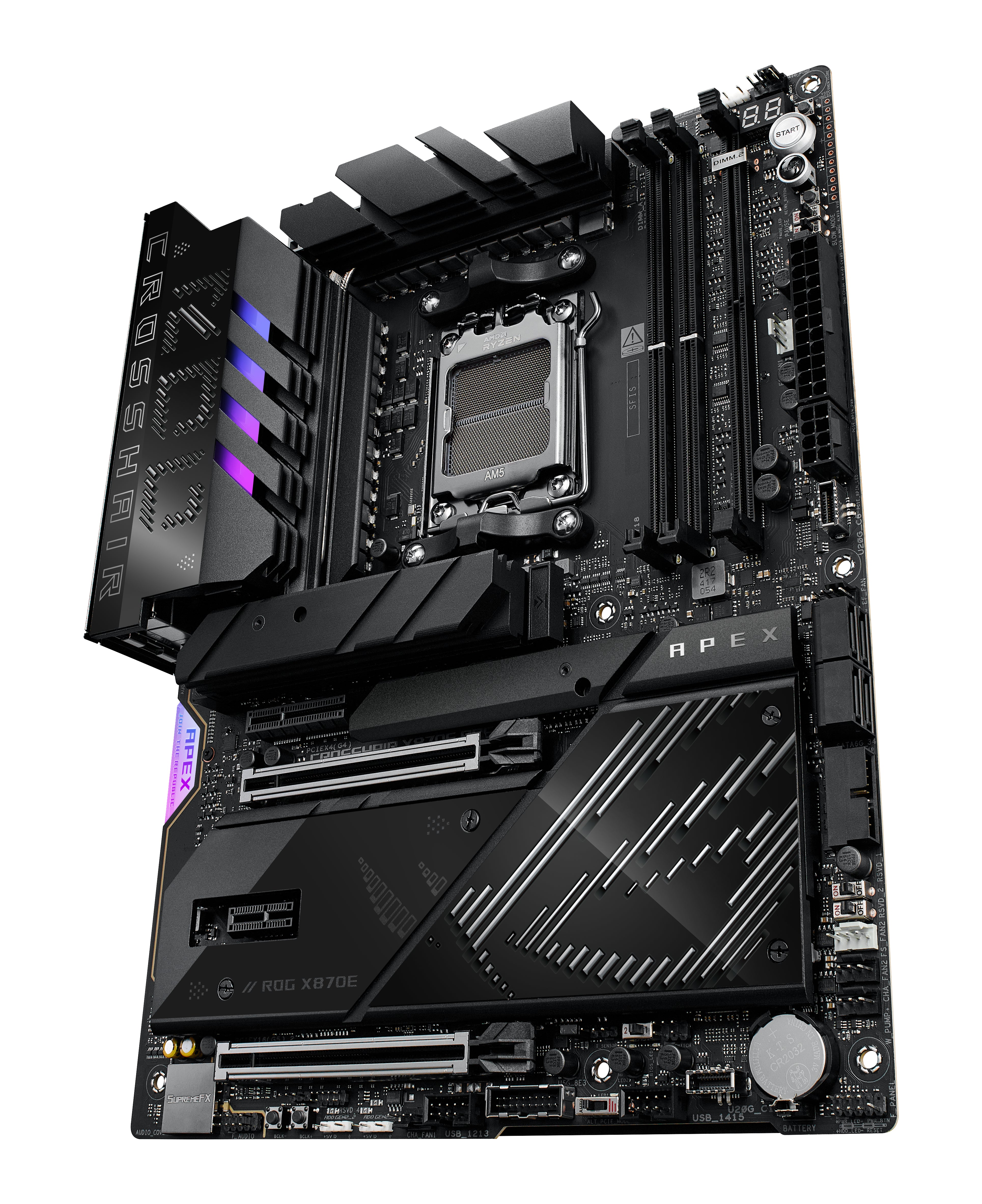

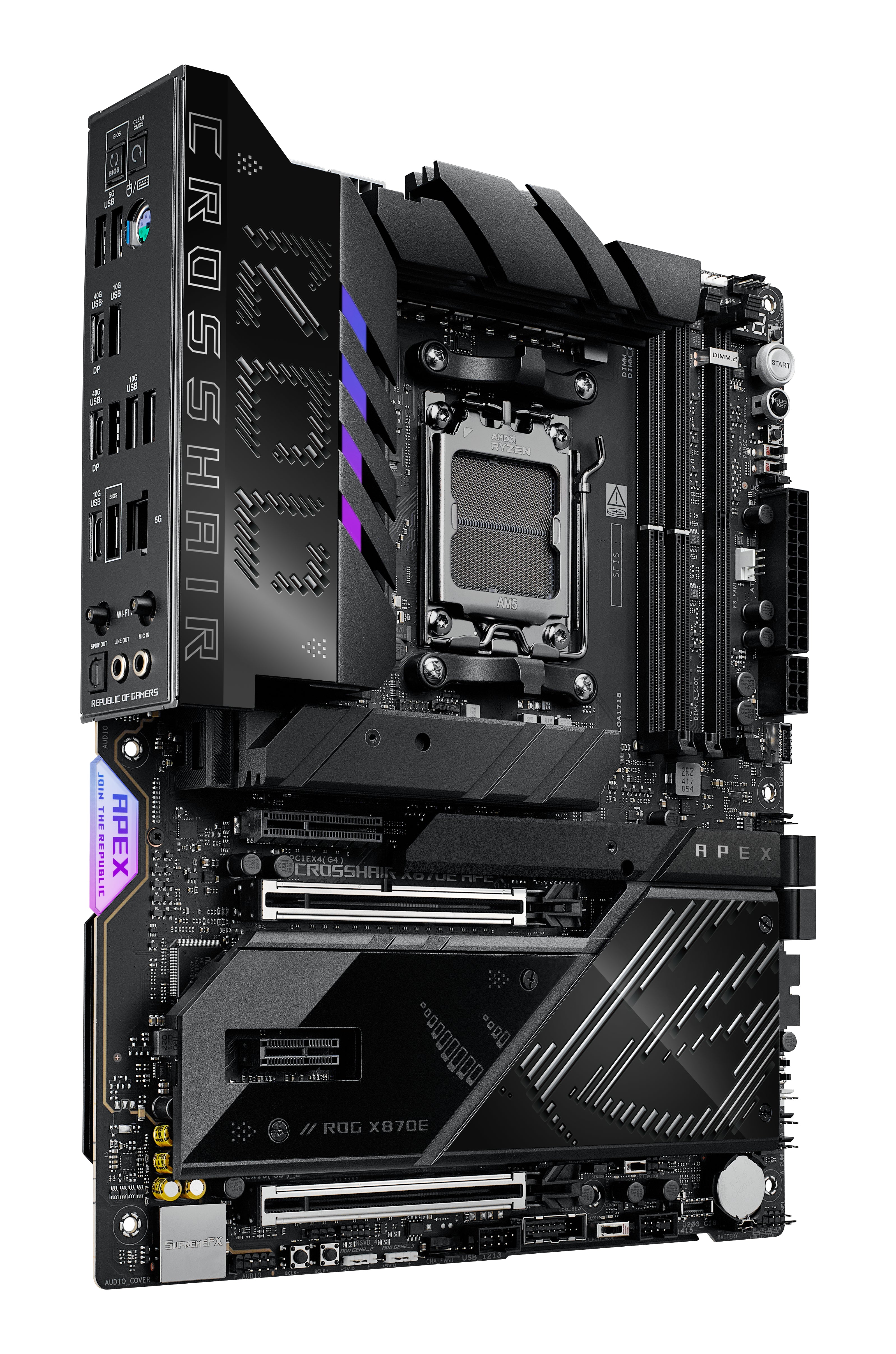

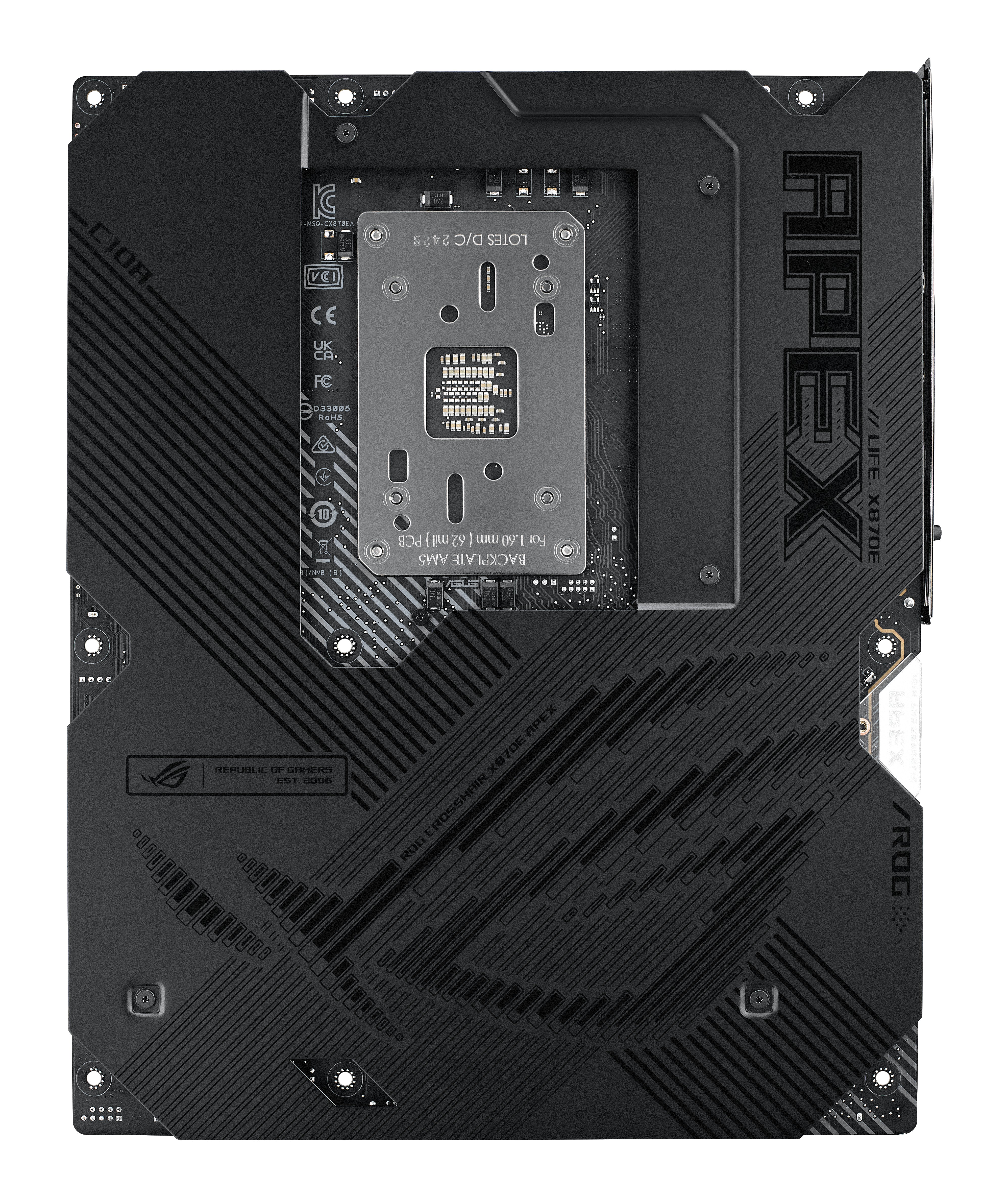

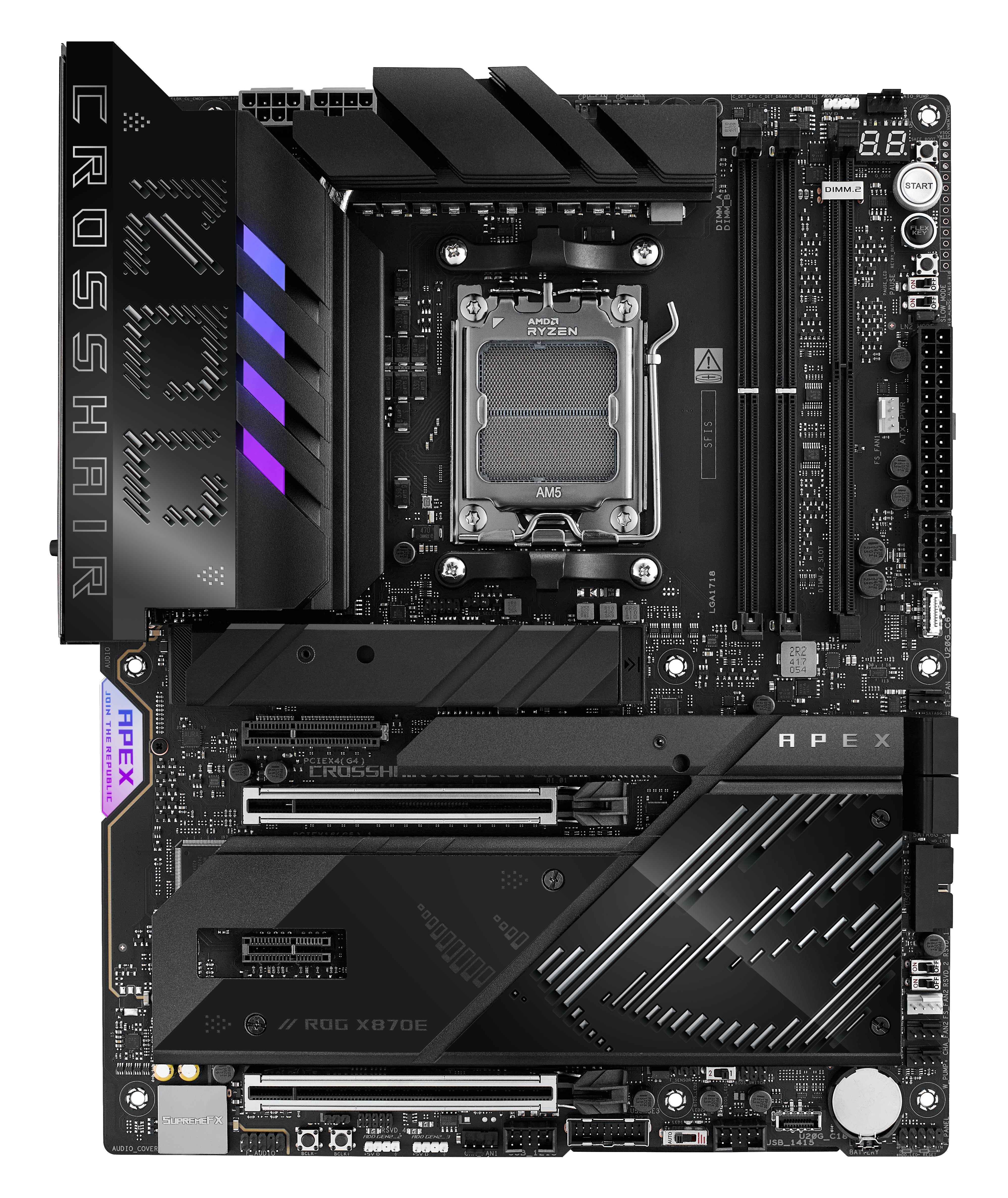

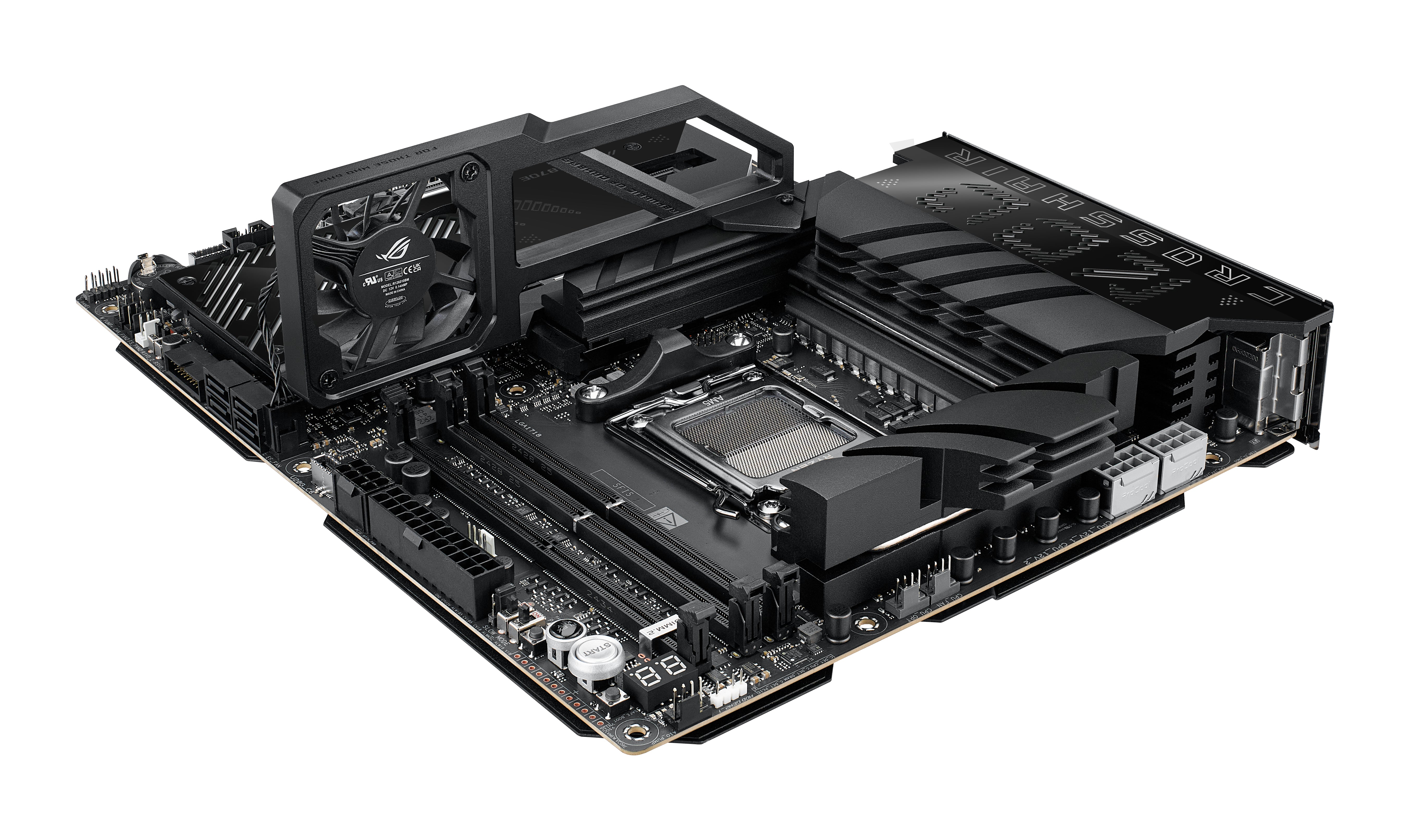

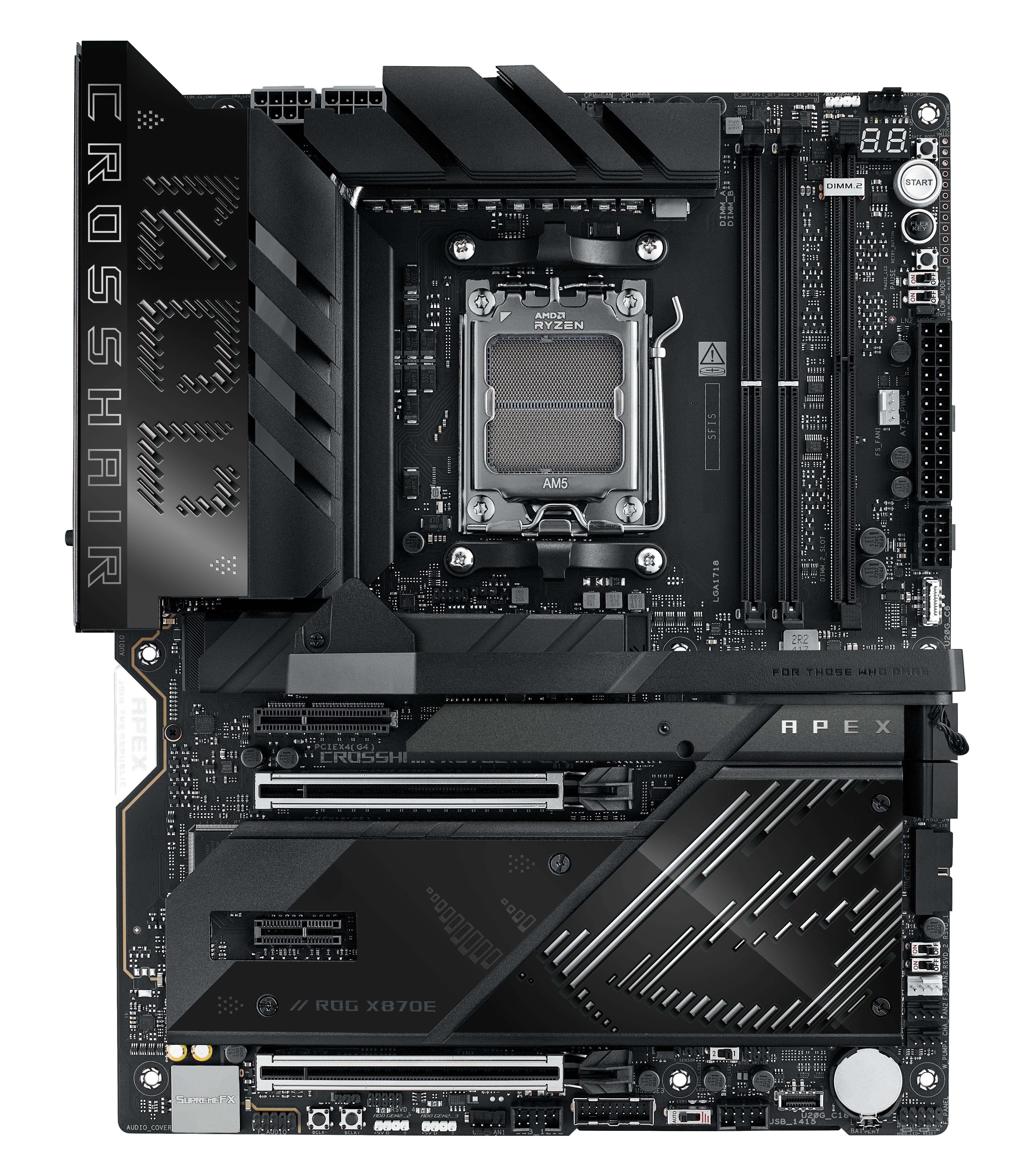

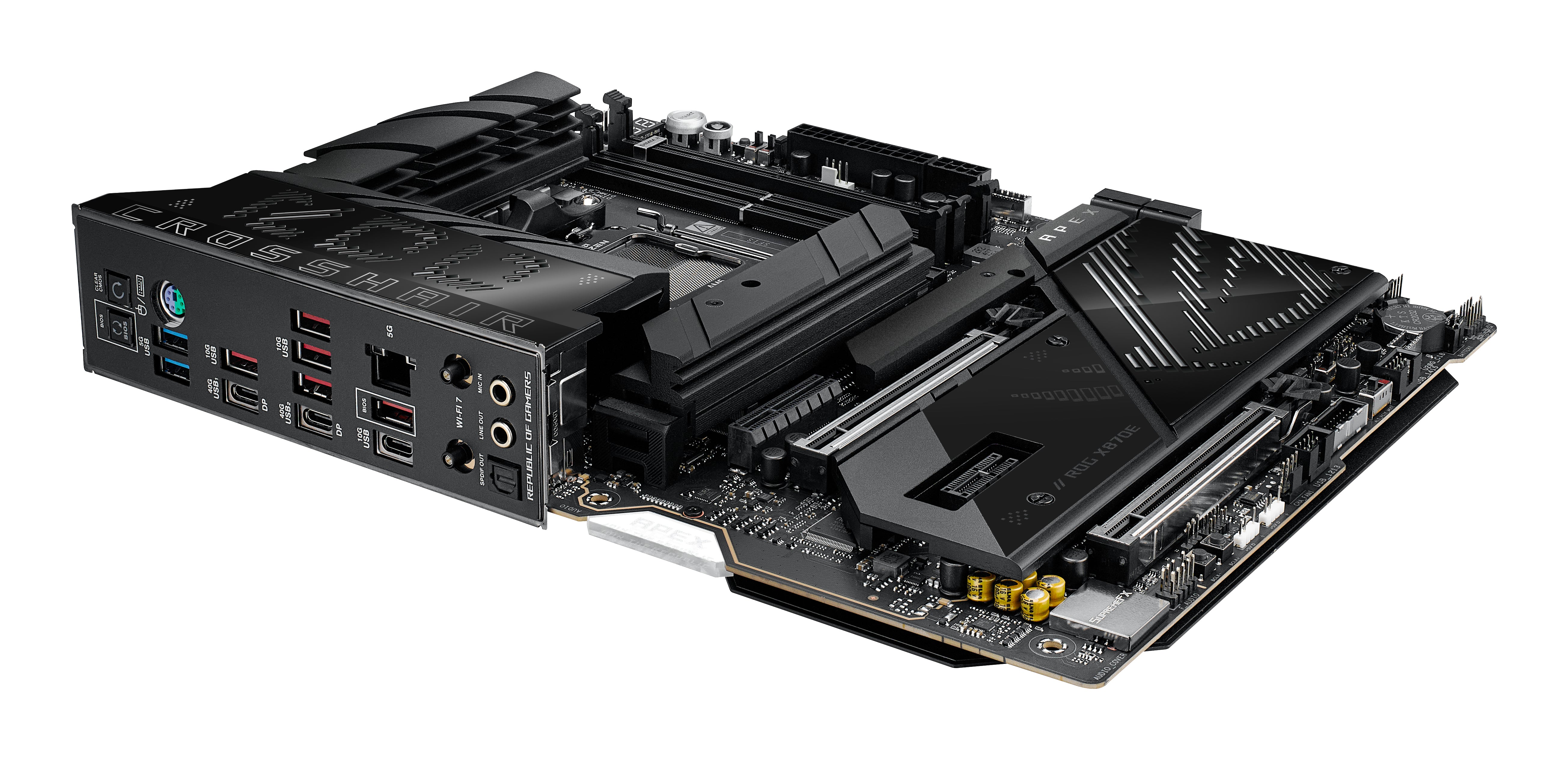

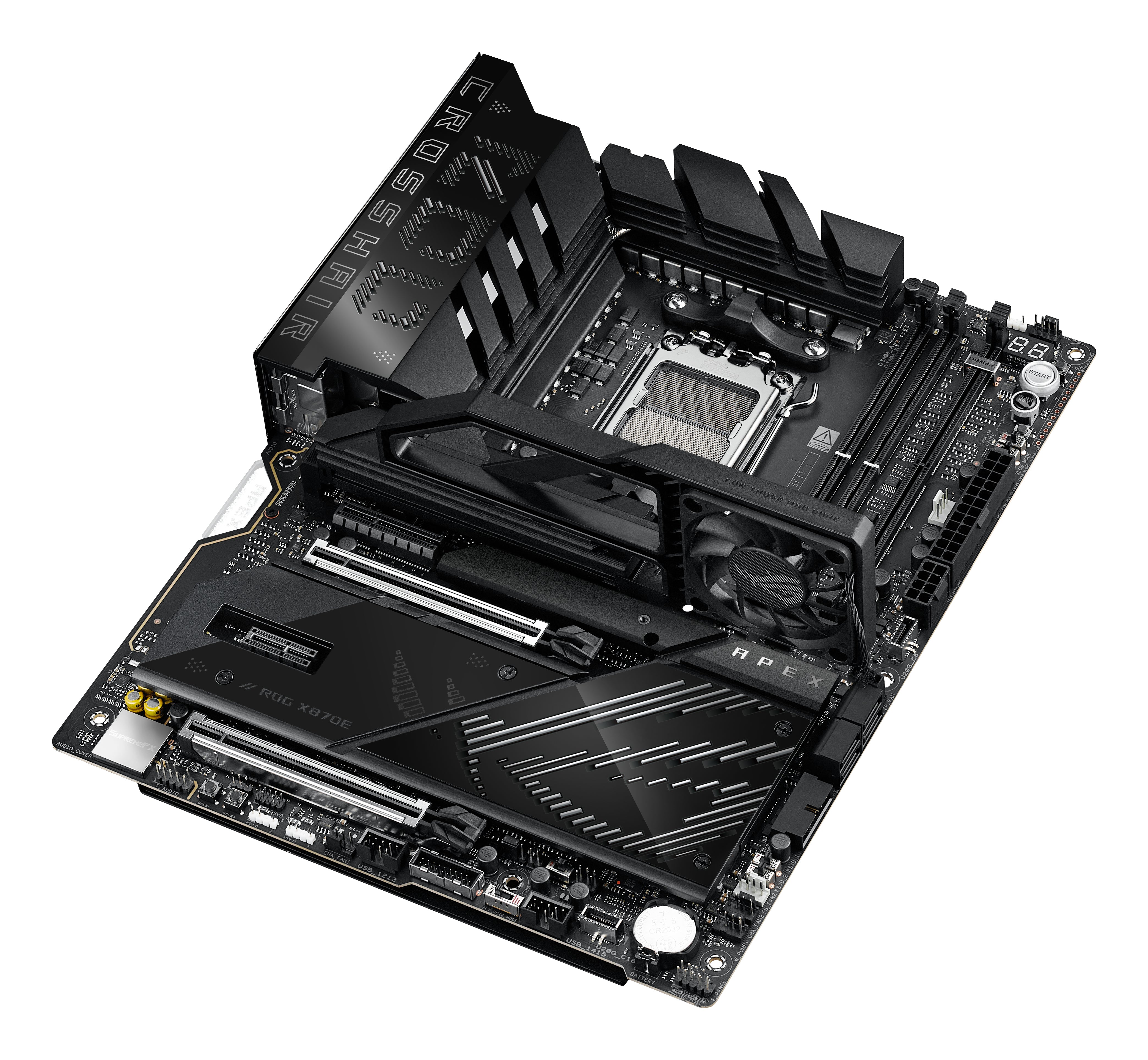

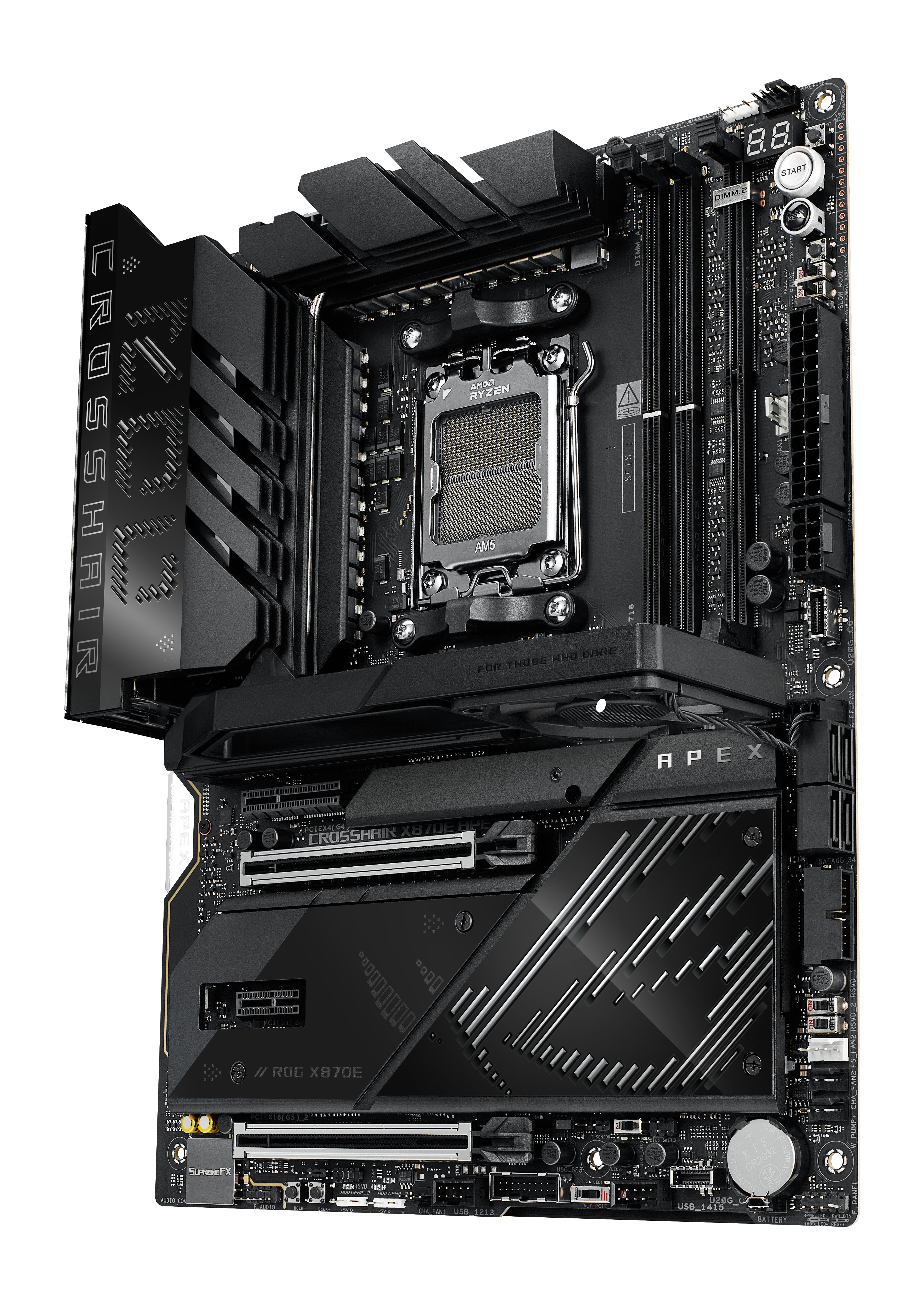

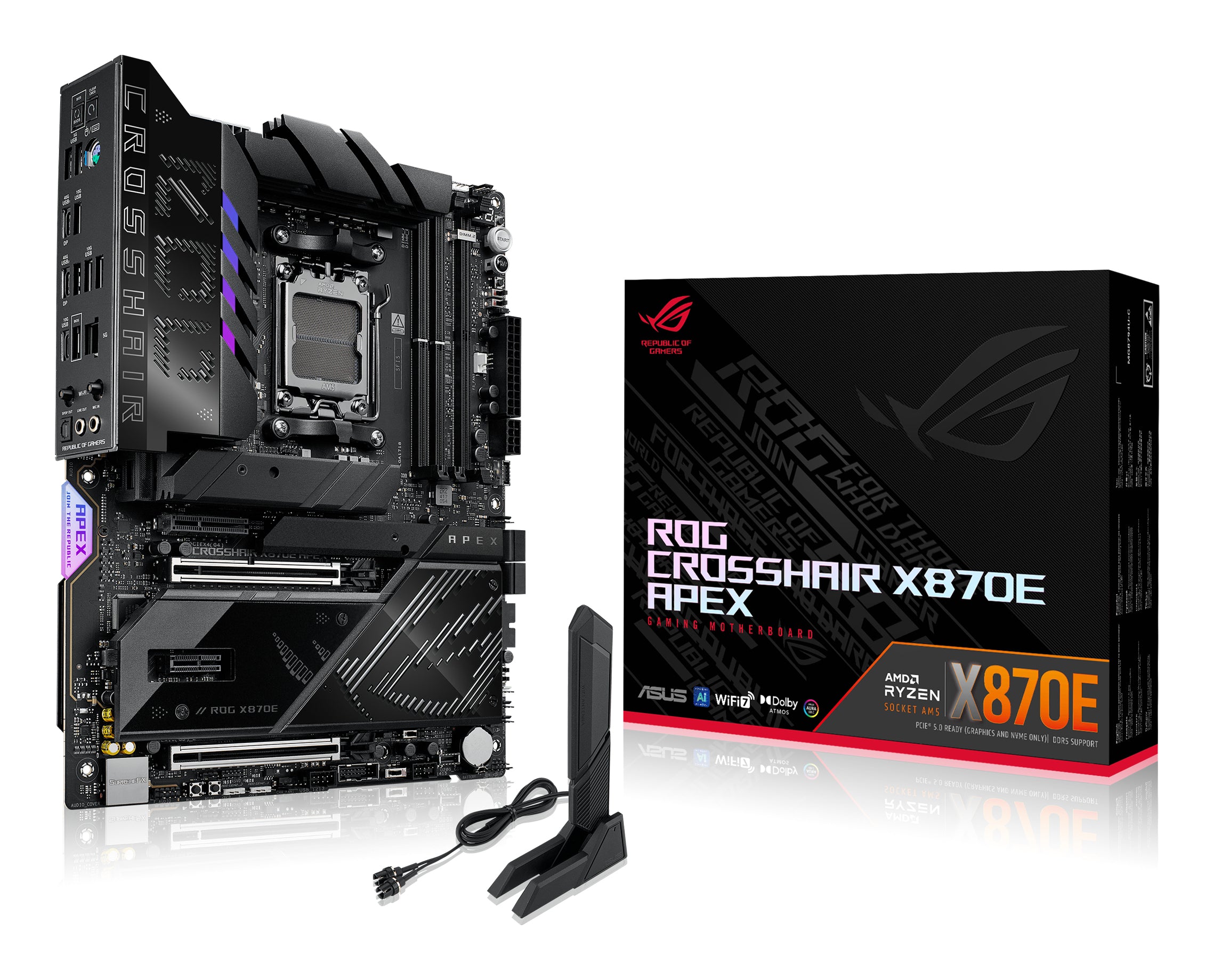

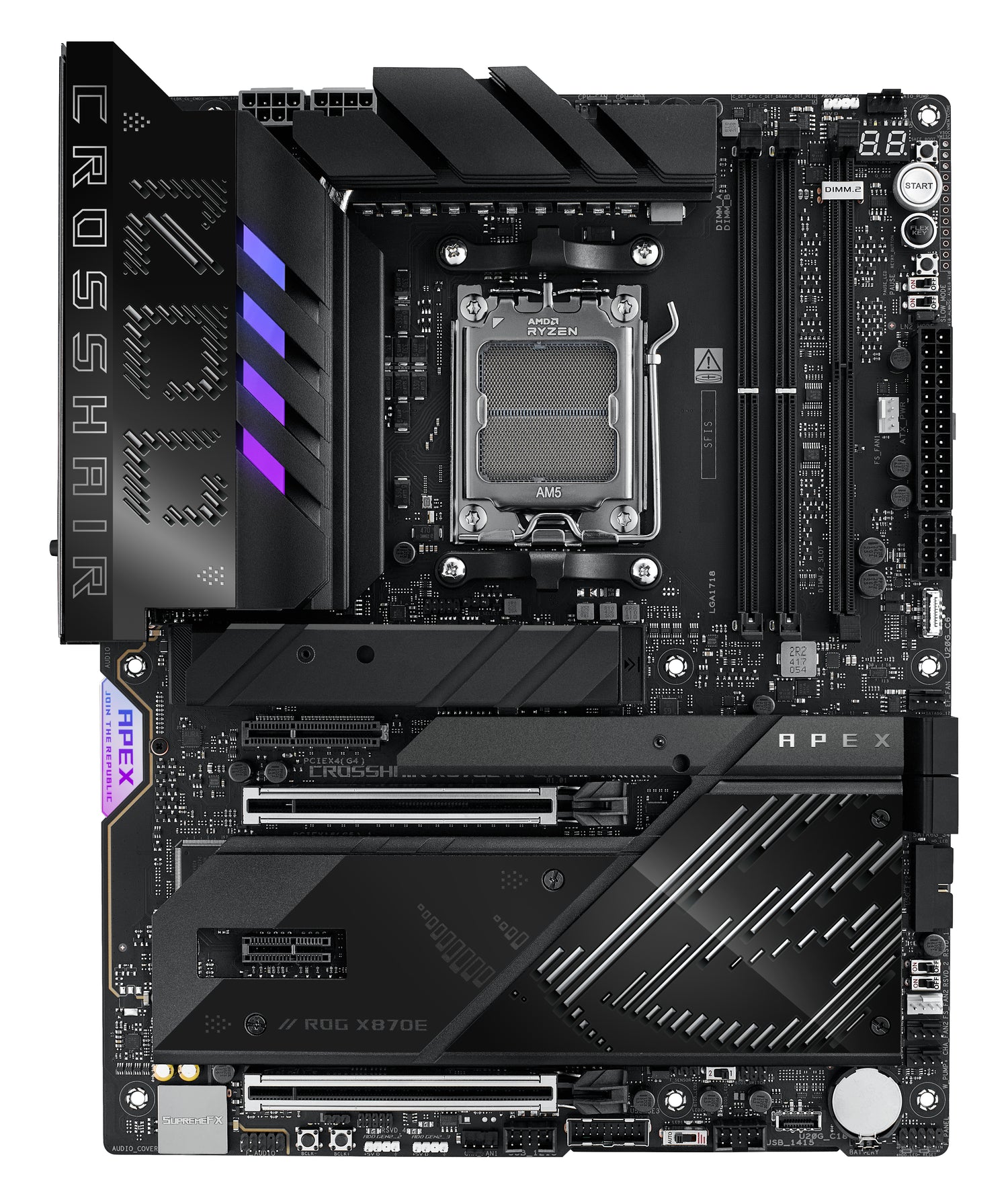

ASUS 90MB1KR0-M0AAY0 placas base Windows 11

Asus
 |  SKU: ROG CROSSHAIR X870E APEX
Envío de 24 a 72 horas en todo México Recíbelo entre mar 14 y jue 16 jul
Precio lista: $ 16,384.64 | Ahorro: -$0.00
Descuento por volumen agregando +3 pzas
$ 14,352.94 1 – 2 pzas
$ 14,209.41 3 – 5 pzas
$ 14,065.88 6 – 10 pzas
Mejor precio
$ 13,922.35 11+ pzas

NOTIFÍCAME CUANDO ESTE DISPONIBLE
Pagando con PayPal difiere tu compra hasta 18 meses*

Asistente de inteligencia artificial para consultas técnicas de productos de oficina
Pregunta cualquier aspecto técnico del producto
Hazle una pregunta al genio
Asistente Técnico AI FullOffice Consultoría técnica de productos FullOffice.com
Descargar ficha PDF

Descripción
Consulta recursos

Detalle del producto

ASUS 90MB1KR0-M0AAY0. Sistema operativo Windows soportado: Windows 11. Salida de audio: "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for..., Características especiales: Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series..., Otras características: 2 x DIMM slots, max. 128GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series...

¿Por qué elegir el ASUS 90MB1KR0-M0AAY0?

El ASUS 90MB1KR0-M0AAY0 ofrece windows 11, "rog supremefx 7.1 surround sound high definition audio codec alc4080*
- impedance sense for..., supports 5 x m.2 slots and 4 x sata 6gb/s ports*
amd ryzen™ 9000 & 7000 series..., 2 x dimm slots, max. 128gb, ddr5
supports up to
8200+mt/s(oc) with ryzen™ 9000 series..., 2 x usb4® (40gbps) ports support usb type-c® display outputs*

Puntos destacados

▸Sistema operativo Windows soportado: Windows 11
▸Salida de audio: "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
▸Características especiales: Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
**When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
**When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
**When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
▸Otras características: 2 x DIMM slots, max. 128GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
9600+MT/s(OC) with Ryzen™ 8000 Series Processors
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

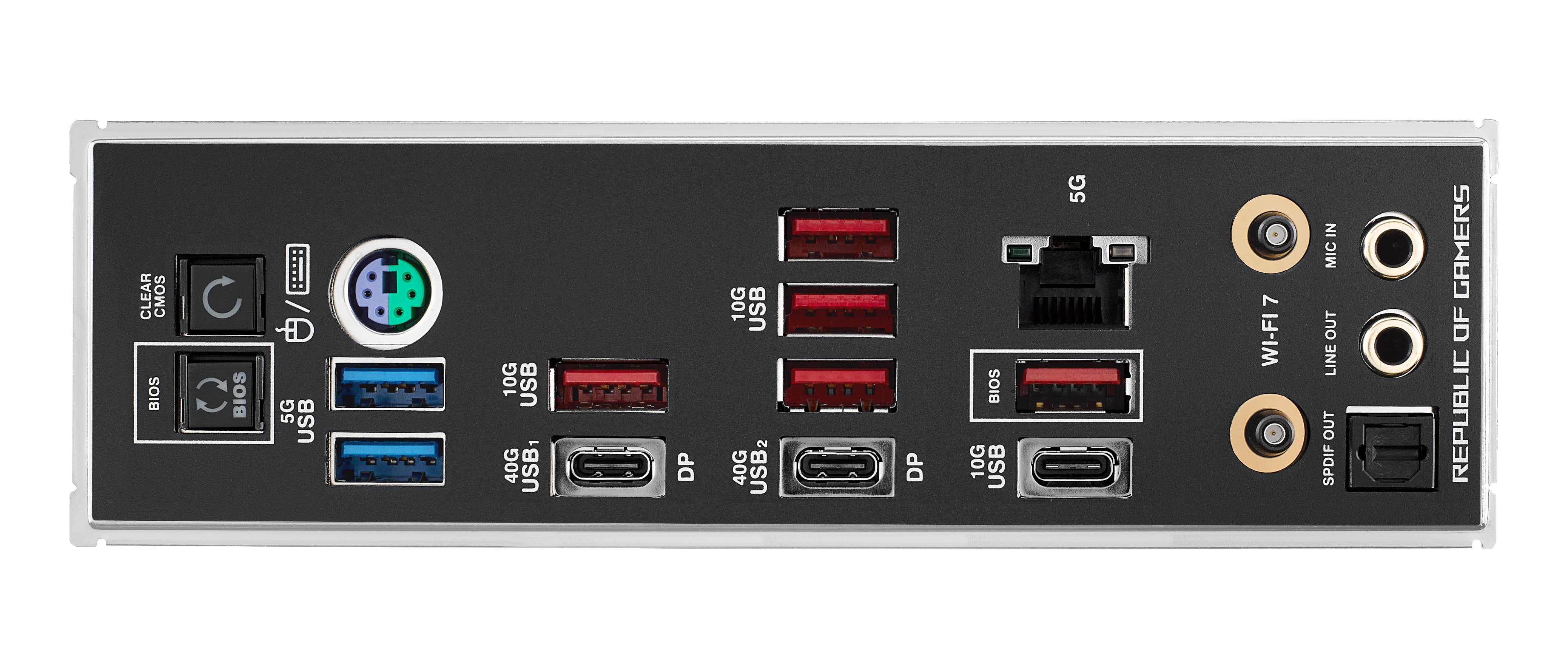

▸Producción gráfica: 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
VGA resolution support depends on processors' or graphic cards' resolution.
*Supports max. 4K@60Hz as specified in DisplayPort 1.4a

Casos de uso recomendados

Uso en oficina
El ASUS 90MB1KR0-M0AAY0, con Windows 11, mejora la productividad en entornos de trabajo profesional.
Hogar y uso personal
El ASUS 90MB1KR0-M0AAY0 es versátil y fácil de usar para múltiples tareas cotidianas, con Windows 11.
Pequeñas y medianas empresas
El ASUS 90MB1KR0-M0AAY0 ofrece relación calidad-precio ideal para PyMEs, con Windows 11.
Educación
El ASUS 90MB1KR0-M0AAY0 es adecuado para entornos educativos que requieren practicidad y durabilidad.
Gobierno e instituciones
El ASUS 90MB1KR0-M0AAY0 cumple estándares de calidad para organismos públicos e instituciones.

Industrias recomendadas

OficinasEducaciónRetailSaludGobiernoPyMEsHogares

Beneficios clave

  • ✔Sistema operativo Windows soportado: Windows 11
  • ✔Salida de audio: "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
    - Impedance sense for front and rear headphone outputs
    - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
    - Supports up to 32-Bit/384 kHz playback on front panel"
    Audio Features
    - SupremeFX Shielding Technology
    - Savitech SV3H712 AMP
    - Gold-plated audio jacks
    - Rear optical S/PDIF out port
    - Premium audio capacitors
    - Audio cover
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
  • ✔Características especiales: Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
    AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
    AMD Ryzen™ 8000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
    M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
    AMD X870E Chipset
    DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    * Specifications vary by CPU types.
    **When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
    **When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
    **When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
  • ✔Otras características: 2 x DIMM slots, max. 128GB, DDR5
    Supports up to
    8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
    9600+MT/s(OC) with Ryzen™ 8000 Series Processors
    8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
    ECC and Non-ECC, Un-buffered Memory*
    Dual channel memory architecture
    Supports AMD Extended Profiles for Overclocking (EXPO™)
    ASUS Enhanced Memory Profile (AEMP)
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
    * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  • ✔Producción gráfica: 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*
    Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    VGA resolution support depends on processors' or graphic cards' resolution.
    *Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Característica Detalle
Identificación
Marca ASUS
Modelo 90MB1KR0-M0AAY0
Número de parte 90MB1KR0-M0AAY0
Categoría Placas base
GTIN / EAN 4711387890240
Características
Sistema operativo Windows soportado Windows 11
Otras características
Salida de audio "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Características especiales Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
**When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
**When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
**When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
Otras características 2 x DIMM slots, max. 128GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
9600+MT/s(OC) with Ryzen™ 8000 Series Processors
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Producción gráfica 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
VGA resolution support depends on processors' or graphic cards' resolution.
*Supports max. 4K@60Hz as specified in DisplayPort 1.4a

Preguntas frecuentes

¿Cuál es sistema operativo windows soportado del 90MB1KR0-M0AAY0?+
Sistema operativo Windows soportado: Windows 11.
¿Cuál es salida de audio del 90MB1KR0-M0AAY0?+
Salida de audio: "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device..
¿Cuál es características especiales del 90MB1KR0-M0AAY0?+
Características especiales: Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
**When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
**When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
**When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled..
¿Cuál es otras características del 90MB1KR0-M0AAY0?+
Otras características: 2 x DIMM slots, max. 128GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
9600+MT/s(OC) with Ryzen™ 8000 Series Processors
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function..
¿Tiene ficha técnica disponible?+
Sí, disponible en la sección de recursos del producto (brochure PDF).
¿Tiene imágenes oficiales del fabricante?+
Sí, cuenta con 1 imagen(es) oficial(es) del fabricante.

Puedes pagar con

  • {"preload" => true}
  • {"preload" => true}
  • {"preload" => true}
  • {"preload" => true}
  • {"preload" => true}
  • {"preload" => true}

Procesamos su pago de forma segura. No guardamos información de tarjetas ni tenemos acceso a sus datos, garantizando así su total seguridad.

Emitimos factura en el 100% de las compras generadas. *Precios publicados incluyen IVA

  • Pagos Seguros

  • Envíos express

  • +100,000 Productos

  • Garantías con fabricante

Las mejores marcas tech

Lo más visto

Categorías destacadas

Lo más vendido

Asus

ASUS 90MB1KR0-M0AAY0 placas base Windows 11

$ 14,35294 $ 16,38464
Consulta recursos
Brochure / Ficha Técnica

Detalle del producto

ASUS 90MB1KR0-M0AAY0. Sistema operativo Windows soportado: Windows 11. Salida de audio: "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for..., Características especiales: Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series..., Otras características: 2 x DIMM slots, max. 128GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series...

¿Por qué elegir el ASUS 90MB1KR0-M0AAY0?

El ASUS 90MB1KR0-M0AAY0 ofrece windows 11, "rog supremefx 7.1 surround sound high definition audio codec alc4080*
- impedance sense for..., supports 5 x m.2 slots and 4 x sata 6gb/s ports*
amd ryzen™ 9000 & 7000 series..., 2 x dimm slots, max. 128gb, ddr5
supports up to
8200+mt/s(oc) with ryzen™ 9000 series..., 2 x usb4® (40gbps) ports support usb type-c® display outputs*

Puntos destacados

▸Sistema operativo Windows soportado: Windows 11
▸Salida de audio: "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
▸Características especiales: Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
**When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
**When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
**When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
▸Otras características: 2 x DIMM slots, max. 128GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
9600+MT/s(OC) with Ryzen™ 8000 Series Processors
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
▸Producción gráfica: 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
VGA resolution support depends on processors' or graphic cards' resolution.
*Supports max. 4K@60Hz as specified in DisplayPort 1.4a

Casos de uso recomendados

Uso en oficina
El ASUS 90MB1KR0-M0AAY0, con Windows 11, mejora la productividad en entornos de trabajo profesional.
Hogar y uso personal
El ASUS 90MB1KR0-M0AAY0 es versátil y fácil de usar para múltiples tareas cotidianas, con Windows 11.
Pequeñas y medianas empresas
El ASUS 90MB1KR0-M0AAY0 ofrece relación calidad-precio ideal para PyMEs, con Windows 11.
Educación
El ASUS 90MB1KR0-M0AAY0 es adecuado para entornos educativos que requieren practicidad y durabilidad.
Gobierno e instituciones
El ASUS 90MB1KR0-M0AAY0 cumple estándares de calidad para organismos públicos e instituciones.

Industrias recomendadas

OficinasEducaciónRetailSaludGobiernoPyMEsHogares

Beneficios clave

  • ✔Sistema operativo Windows soportado: Windows 11
  • ✔Salida de audio: "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
    - Impedance sense for front and rear headphone outputs
    - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
    - Supports up to 32-Bit/384 kHz playback on front panel"
    Audio Features
    - SupremeFX Shielding Technology
    - Savitech SV3H712 AMP
    - Gold-plated audio jacks
    - Rear optical S/PDIF out port
    - Premium audio capacitors
    - Audio cover
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
  • ✔Características especiales: Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
    AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
    AMD Ryzen™ 8000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
    M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
    AMD X870E Chipset
    DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    * Specifications vary by CPU types.
    **When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
    **When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
    **When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
  • ✔Otras características: 2 x DIMM slots, max. 128GB, DDR5
    Supports up to
    8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
    9600+MT/s(OC) with Ryzen™ 8000 Series Processors
    8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
    ECC and Non-ECC, Un-buffered Memory*
    Dual channel memory architecture
    Supports AMD Extended Profiles for Overclocking (EXPO™)
    ASUS Enhanced Memory Profile (AEMP)
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
    * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  • ✔Producción gráfica: 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*
    Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    VGA resolution support depends on processors' or graphic cards' resolution.
    *Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Característica Detalle
Identificación
Marca ASUS
Modelo 90MB1KR0-M0AAY0
Número de parte 90MB1KR0-M0AAY0
Categoría Placas base
GTIN / EAN 4711387890240
Características
Sistema operativo Windows soportado Windows 11
Otras características
Salida de audio "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Características especiales Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
**When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
**When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
**When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
Otras características 2 x DIMM slots, max. 128GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
9600+MT/s(OC) with Ryzen™ 8000 Series Processors
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Producción gráfica 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
VGA resolution support depends on processors' or graphic cards' resolution.
*Supports max. 4K@60Hz as specified in DisplayPort 1.4a

Preguntas frecuentes

¿Cuál es sistema operativo windows soportado del 90MB1KR0-M0AAY0?+
Sistema operativo Windows soportado: Windows 11.
¿Cuál es salida de audio del 90MB1KR0-M0AAY0?+
Salida de audio: "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device..
¿Cuál es características especiales del 90MB1KR0-M0AAY0?+
Características especiales: Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
**When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
**When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
**When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled..
¿Cuál es otras características del 90MB1KR0-M0AAY0?+
Otras características: 2 x DIMM slots, max. 128GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
9600+MT/s(OC) with Ryzen™ 8000 Series Processors
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function..
¿Tiene ficha técnica disponible?+
Sí, disponible en la sección de recursos del producto (brochure PDF).
¿Tiene imágenes oficiales del fabricante?+
Sí, cuenta con 1 imagen(es) oficial(es) del fabricante.
Ver producto
